CT-Systeme

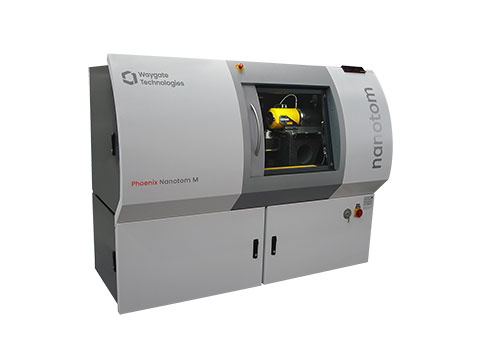

Waygate phoenix nanotom M
180 kV Nanofokus-Röhre
Hohe Detailerkennbarkeit bis 0,2 μm
Max. Probengröße: 240 mm x 250 mm
Gewicht: 3kg
Geeignet für: kleine Bauteile, Kunststoffe, biologische Proben

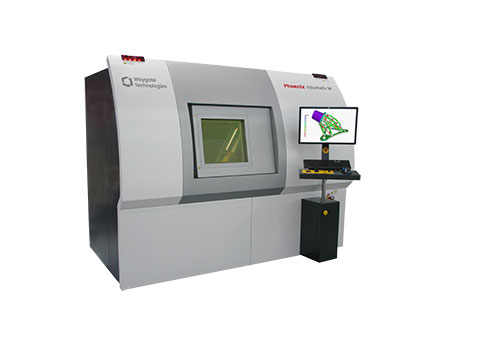

Waygate phoenix v|tome|x M 240
180 kV Nanofokus- und
240 kV Mikrofokus-Röhre
Detailerkennbarkeit bis ca. 2µm
Max. Probengröße: 600 x 360 mm; Gewicht: 20 kg
Messgenauigkeit gem. VDI 2630
Geeignet für: Kunststoffe, Stahl bis ca. 20 mm, Aluminium bis ca. 80 mm Wanddicke

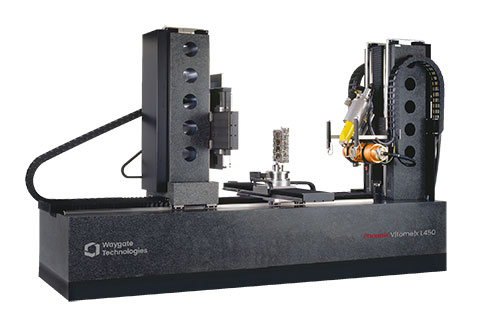

Waygate phoenix v|tome|x L450
240 kV Mikrofokus- und
450 kV Minifokus-Röhre
Detailerkennbarkeit bis 20 μm
Max. Probengröße: 2.400 mm x 800 mm; Gewicht: 100 kg
Geeignet für: Stahl bis 70 mm, Aluminium bis 300 mm, Kunststoff bis 500 mm Wandstärke
